Special Flow Meter

• Accuracy
• 0.5% of reading

• Application Media
• Liquids (Water, Chemicals, etc.)

• Color
• Blue (Display housing), Metallic (Flow tube)

• Connecting Type
• Flange/Clamp type

• Connector
• Screw terminal

• Cut Size
• Customizable

• Diameter
• 15mm to 100mm (custom options available)

• Dimension (L*W*H)
• 250 mm x 180 mm x 130 mm (approx.)

• Display Type
• Other, Digital LED display

• Flow Rate
• Up to 10,000 LPH

• Housing Material
• Powder coated metal, Stainless steel sensor

• Language
• English

• Length
• Standard as per diameter

• Load Capacity
• Depends on model and signal type

• Material
• Stainless Steel 304/316

• Measurement Range
• Wide range, as per model specification

• Measuring Units
• LPH/LPM/Cubic Meter

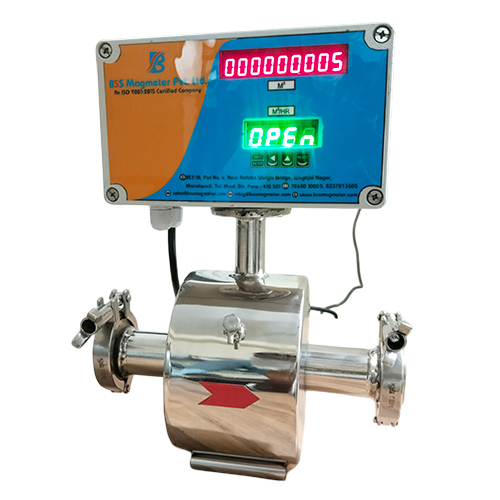

• Model
• FT17 Special

• Mounting
• Inline Flange/Clamp

• Operating Temperature
• 0C to 60C

• Output
• 4-20mA, Pulse Output

• Power Consumption
• Low (Typically less than 10W)

• Power Supply
• 230V AC, 50Hz

• Pressure Range
• up to 16 Bar

• Process Connection
• Standard Flange/Clamp

• Protection
• IP65

• Range
• 0.1 to 10,000 LPH (liters per hour)

• Response Time
• <1 second

• Sensor Type
• Electromagnetic

• Signal Type
• Analog and Digital

• Stability
• Long term stable measurement

• Storage Temperature
• -20C to 80C

• Temperature Range
• 0C to 60C (Standard configuration)

• Velocity Range
• 0.3 m/s to 10 m/s

• Equipment Type
• Electromagnetic Flow Meter

• Accuracy
• 0.5% of reading

• Application Media
• Liquid (Water, Chemicals, etc.)

• Capacity
• Varies by model

• Color
• Silver with Blue Control Unit

• Connecting Type
• Flanged Ends

• Connectivity Type
• Wired

• Connector
• Cable gland / Terminal block

• Current Range
• 4-20mA

• Cut Size
• DN 25 mm to DN 200 mm

• Diameter
• DN 25 mm to DN 200 mm

• Dimension (L*W*H)
• Approx. 300 x 250 x 250 mm

• Display Type
• Other, LED Digital Display

• Flow Rate
• 0.1 - 10 m3/h adjustable

• Frequency
• 50/60 Hz

• Housing Material
• SS 304/316

• Humidity %
• 95% RH

• Input
• Flowing Liquid

• Language
• English

• Length
• Variable as per Model

• Load Capacity
• Up to 10 Bar

• Material
• Stainless Steel

• Measurement Range
• 0.1 - 10 m3/h

• Measuring Units
• m3/h, L/min

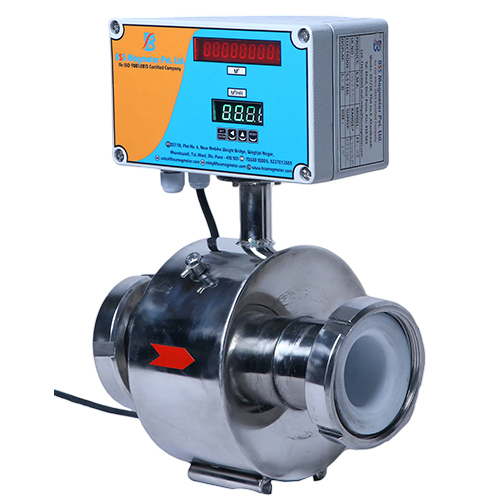

• Model
• FT18

• Mounting
• Inline

• Operating Temperature
• -10C to +60C

• Output
• 4-20 mA, Pulse

• Power Consumption
• < 10W

• Power Supply
• 230V AC / 24V DC

• Pressure Range
• Max 10 bar

• Process Connection
• Flanged or Threaded

• Protection
• IP65

• Range
• 0.1 to 10 m3/h

• Resolution
• High (0.001 L/min)

• Response Time
• < 2 seconds

• Sensitivity
• High

• Sensor Type
• Electromagnetic Sensor

• Signal Type
• Analog / Digital

• Stability
• High - industrial design

• Storage Temperature
• -20C to +80C

• Temperature Range
• 0C to 60C

• Velocity Range
• 0.1 to 10 m/s

• Equipment Type
• Special Flow Meter

• Accuracy
• 0.5% of reading

• Application Media
• Conductive liquids, water, chemicals, effluents

• Axis Type
• Single

• Capacity
• Model dependent

• Color
• Blue / Grey body

• Connecting Type
• Flanged Connection

• Connectivity Type
• Wired

• Connector
• Cable Gland

• Current Range
• 4-20 mA output

• Diameter
• 15 mm to 600 mm

• Dimension (L*W*H)
• Depends on model / size

• Display Type
• Other, LED Digital Display

• Flow Rate
• As per user specification

• Frequency
• 50 Hz

• Housing Material
• Powder Coated / SS

• Humidity %
• 0100% RH (non-condensing)

• Input
• Electric

• Language
• English

• Length
• Varies (based on model)

• Material
• SS304 / SS316 / PTFE liner

• Measurement Range
• As per customized requirement

• Measuring Units
• Litre/hr, M3/hr, LPM, m3/min

• Model
• FT19

• Mounting
• Inline flange mounting

• Operating Temperature
• up to 60C

• Output
• 4-20 mA analog output, RS485 (optional)

• Power Consumption
• 10 VA (approx.)

• Power Supply
• 230V AC, 50 Hz

• Pressure Range
• Up to 16 bar

• Process Connection
• Flanged / Threaded

• Protection
• IP65 enclosure

• Range
• Selectable, factory set as per application

• Resolution
• High

• Response Time
• < 500 ms

• Sensitivity
• High

• Sensor Type
• Electromagnetic

• Signal Type
• Pulse / Analog

• Stability
• High

• Storage Temperature
• -10C to 80C

• Temperature Range
• Ambient to 80C

• Velocity Range
• 0.3 to 10 m/s
