Insertion Flow Meter

• Equipment Type
• Insertion Electromagnetic Flow Meter

• Accuracy
• 1.5% of reading

• Application Media
• Water & Compatible Liquids

• Axis Type
• Single

• Capacity
• Application dependent

• Color
• Grey/Blue (Enclosure)

• Connecting Type
• Wired

• Connectivity Type
• Wired, Terminal Block

• Connector
• Terminal

• Current Range
• 4-20 mA Output

• Cut Size
• As per pipe diameter

• Diameter
• DN50 to DN600

• Dimension (L*W*H)
• Custom as per insertion length

• Display Type
• Other, Digital LCD Display

• Flow Rate
• up to 2000 m3/h (as per pipe size)

• Frequency
• 50/60 Hz

• Housing Material
• Weatherproof Plastic/Metal

• Humidity %
• 95% RH (non-condensing)

• Input
• Flow through probe

• Language
• English

• Length
• Customizable

• Material
• Stainless Steel Probe, PVC/Plastic Enclosure

• Measurement Range
• For flow velocity and volumetric flow rate

• Measuring Units
• m3/h, l/min, m/s

• Model
• FT13

• Mounting
• Insertion Type

• Operating Temperature
• 0C to 60C

• Output
• 4-20 mA, Pulse

• Power Consumption
• <10W

• Power Supply
• 24V DC / 230V AC

• Pressure Range
• Up to 16 bar

• Process Connection
• Threaded/Flanged

• Protection
• IP65

• Range
• 0.1 to 10 m/s

• Resolution
• 0.001 m/s

• Response Time
• <2s

• Sensitivity
• High

• Sensor Type
• Electromagnetic

• Signal Type
• Analog/DC Pulse

• Stability
• High stability sensor

• Storage Temperature
• -10C to 70C

• Temperature Range
• 0C to 60C (operation)

• Velocity Range
• 0.1 - 10 m/s

• Equipment Type
• Insertion Flow Meter

• Accuracy
• 1.5% of reading

• Application Media
• Liquid (Water, Chemicals, etc.)

• Capacity
• Pipe flow dependent

• Color
• Silver/Blue

• Connecting Type
• Cable

• Connectivity Type
• Wired

• Connector
• M16 Waterproof

• Current Range
• 4-20 mA

• Diameter
• DN80 to DN6000

• Dimension (L*W*H)
• Approx. 350mm x 200mm x 150mm

• Display Type
• Other, Digital LCD Display

• Flow Rate
• Up to 10000 m3/h

• Frequency
• 50/60 Hz

• Housing Material
• Stainless Steel, ABS

• Humidity %
• Up to 90% RH

• Input
• Standard signal

• Language
• English

• Length
• Customizable

• Material
• Stainless Steel

• Measurement Range
• 0.03 ~ 12 m/s flow velocity

• Measuring Units
• m3/h, L/min

• Model

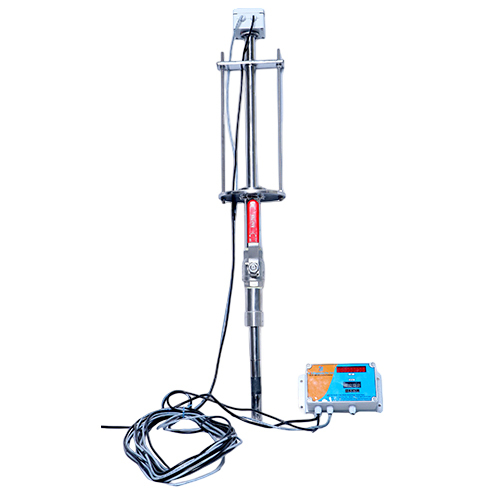

• FT14

• Mounting
• Insertion/Clamp-on

• Operating Temperature
• -20C to +60C

• Output
• 4-20 mA/Relay/Pulse

• Power Consumption
• <5 W

• Power Supply
• 24V DC / 220V AC

• Pressure Range
• 1.6 MPa

• Process Connection
• Threaded/Flanged

• Protection
• IP65

• Range
• Up to 10000 m3/h

• Resolution
• 0.001 m/s

• Response Time
• <3 seconds

• Sensitivity
• High

• Sensor Type
• Electromagnetic

• Signal Type
• Analog/Digital

• Stability
• 0.2% FS/year

• Storage Temperature
• -30C to +70C

• Temperature Range
• -20C to +60C

• Velocity Range
• 0.03 ~ 12 m/s

• Equipment Type
• Insertion Flow Meter

• Accuracy
• 1% of reading

• Application Media
• Liquid (Water / Chemicals / Solvents)

• Axis Type
• Single Axis

• Capacity
• As per pipe size

• Color
• Blue / Grey

• Connecting Type
• Threaded / Flanged

• Connectivity Type
• Wired

• Connector
• Screw / Terminal Block

• Current Range
• 4-20 mA Output

• Cut Size
• Varies as per pipe diameter

• Diameter
• DN50 to DN600 (2 to 24)

• Dimension (L*W*H)
• Approx. 400mm x 140mm x 100mm

• Display Type
• Other, Digital LED Display

• Flow Rate
• 0.3-10 m/s (velocity equivalent)

• Frequency
• 50 Hz / 60 Hz

• Housing Material
• ABS / Stainless Steel

• Humidity %
• 0-95% RH

• Input
• Flow velocity

• Language
• English

• Length
• Sensor insertion adjustable

• Load Capacity
• -

• Material
• SS316, PVC, PTFE options

• Measurement Range
• Proportional to Pipe Size

• Measuring Units
• m3/hr, LPM, LPS, GPM, etc.

• Model

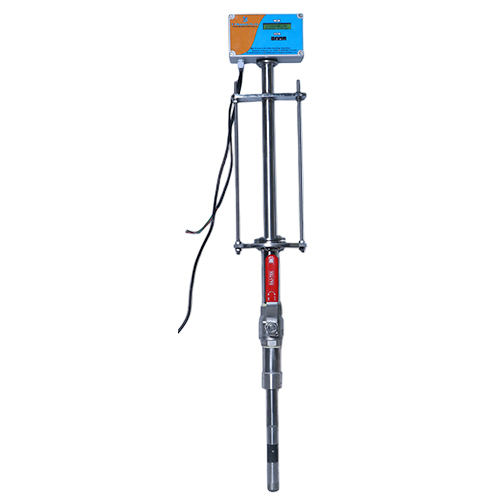

• FT15

• Mounting
• Insertion, flange or threaded

• Operating Temperature
• 0 to 80C

• Output
• 4-20 mA, RS485 Modbus, Relay Output

• Power Consumption
• 5W (approx.)

• Power Supply
• 230V AC / 24V DC

• Pressure Range
• 0 to 10 bar

• Process Connection
• 3/4 BSP/NPT Thread, Flange

• Protection
• IP65

• Range
• 0.3 - 10 m/s

• Resolution
• 0.01 m/s

• Response Time
• <0.5 seconds

• Sensitivity
• High

• Sensor Type
• Magnetic / Electromagnetic

• Signal Type
• Current, Pulse

• Stability
• <0.1% FS/year

• Storage Temperature
• -10 to 70C

• Temperature Range
• 0 to 80C

• Velocity Range
• 0.3 to 10 m/s

• Equipment Type
• Insertion Flow Meter

• Accuracy
• 2% of reading

• Application Media
• Water, liquids

• Capacity
• Industrial

• Color
• Silver, Blue

• Connecting Type
• Flange/Threaded

• Connectivity Type
• Wired

• Connector
• Cable gland type

• Current Range
• 4-20 mA

• Cut Size
• Suitable for various pipe sizes

• Diameter
• DN80 to DN600

• Dimension (L*W*H)
• Customized as per model

• Display Type
• Other, Digital LCD

• Flow Rate
• 0.3-10 m/s

• Frequency
• 50/60 Hz

• Housing Material
• Stainless Steel/ABS

• Humidity %
• up to 95% RH

• Input
• Analog/Digital

• Language
• English

• Length
• As per model

• Material
• Stainless Steel, ABS

• Measurement Range
• 0 - 3000 m3/h

• Measuring Units
• Litre, m3, GPM

• Model
• FT16

• Mounting
• Insertion/Clamp-on

• Operating Temperature
• 0C to 80C

• Output
• 4-20 mA, Pulse

• Power Consumption
• Less than 10W

• Power Supply
• 230V AC / 24V DC

• Pressure Range
• 1.6 MPa

• Process Connection
• Insertion type

• Protection
• IP65

• Range
• 0.3 m/s to 10 m/s

• Resolution
• 0.01 m3/h

• Response Time
• 2 s

• Sensitivity
• High sensitivity insertion probe

• Sensor Type
• Electromagnetic

• Signal Type
• Analog/Digital

• Stability
• Long-term, high stability

• Storage Temperature
• -20C to 85C

• Temperature Range
• 0C to 80C

• Velocity Range
• 0.3 to 10 m/s
